Specification
| CPU | - Intel® Core™ i7 / i5 / i3 Mobile Processor Family |
| Chipset | - Mobile Intel® HM55 Express chipset
*Due to Windows® XP and PCH chipset (HM55) limitations, if you use Windows® XP, please disable the BIOS option "USB2.0 Rate Matching Hub" to make USB devices work properly.
(For example, in the process of installing Windows® XP or using USB3.0 devices.) |
| Memory | - 2 x DDR3 SO-DIMM slots, 4GB per DIMM (Max 8GB*) - Support dual channel DDR3 1066MHz
*Due
to the operating system limitation, the actual memory size may be less
than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
|
| VGA | - Intel® HD Graphics*
*Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® Vista™ and Windows® 7.
|
| HDD | - 2.5"HDD, support 2nd 2.5"HDD |
| ODD | - DVD Super Multi |

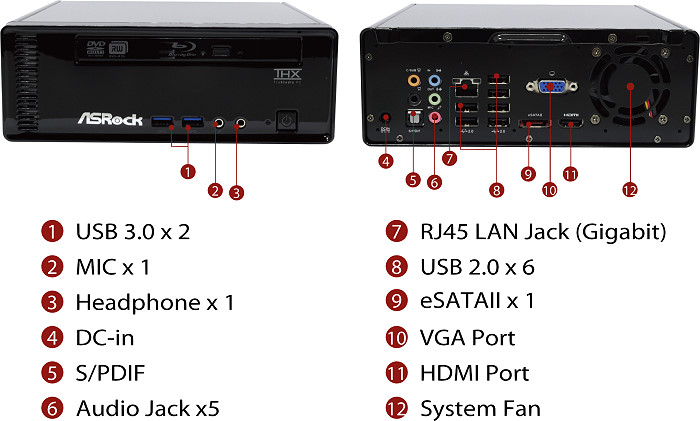

| Front I/O | - 2 x USB 3.0, 1 x MIC, 1 x Headphone |
| Rear I/O | - 1 x HDMI, 1 x D-Sub VGA, 6 x USB 2.0, 1 x S/PDIF, 1 x eSATAII*
*For eSATA function, Hot Plug function is supported in AHCI mode only. IDE mode does not support Hot Plug function.
|
| LAN | - Gigabit LAN |
| Sound | - 7.1 CH HD Audio with THX TruStudio PRO™ |
| WiFi | - 802.11b/g/n wireless LAN*
*300Mbps, 2T/2R
|
| Remote Controller | - Support MCE function |
| Power Unit | - 90W/19V Adapter |
| Dimension | - 195mm(W) x 70mm(H) x 186mm(L) |
| Volume (liters) | - 2.5L |
