ASRock Vision 3D Series Spec











Specification

CPU- Intel® Core™ i3-370M Mobile Processor
- Support Intel® Core™ i7 / i5 / i3 Mobile Processor Family
OS- Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant

*Due to VGA driver limitation, 3D function only supports Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit.
Chipset- Mobile Intel® HM55 Express chipset
Memory- 2 x 2GB DDR3 1066MHz
- Support DDR3 1066MHz, 2 x SO-DIMM slots, Max. up to 8GB*

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
VGA- NVIDIA® GeForce GT425M Graphics, NVIDIA® 3D Vision, 3DTV Play Capable
HDD- 500GB, 7200 rpm
- Support 2.5" SATA HDD
ODD- BD Combo

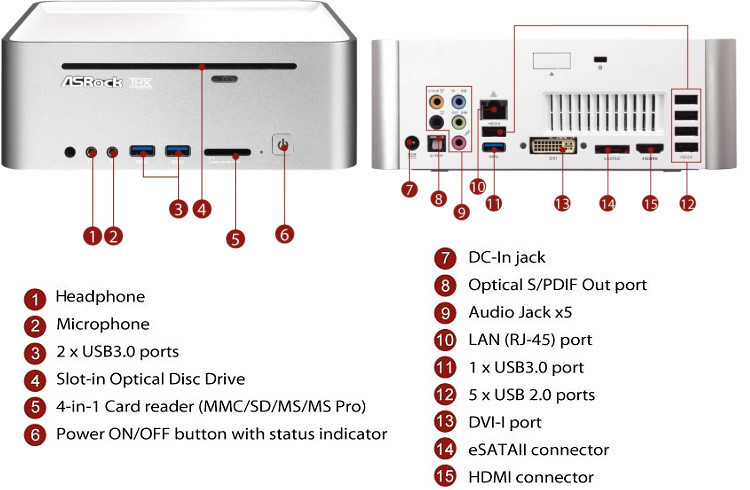

Front I/O- 2 x USB 3.0
- 1 x MIC
- 1 x Headphone
- 4-in-1 Card reader (MMC/SD/MS/MS PRO)
Rear I/O- 1 x HDMI
- 1 x DVI-I (Dual-Link)
- 5 x USB 2.0
- 1 x S/PDIF
- 1 x eSATAII*
- 1 x USB 3.0**

* For eSATA function, Hot Plug function is supported in AHCI mode only. IDE mode does not support Hot Plug function.

** This USB 3.0 port does not support Hot-Plug and legacy function.
LAN- Gigabit LAN
Sound- 7.1 CH HD Audio with THX TruStudio PRO™
WiFi- 2T2R WiFi 802.11b/g/n
Remote Controller- MCE Remote Controller
Power Unit- 90W/19V Adapter
Dimension- 200mm(W) x 70mm(H) x 200mm(L)
Volume (liters)- 2.8L
Software- NVIDIA® 3D TV Play software and CyberLink PowerDVD 10 OEM BD 3D
