ASRock CoreHT Series Spec









Specification

CPU- Intel® Core™ i5 2520M Mobile Sandy Bridge Processor
- Supports 2nd Generation Intel® Core™ i7 / i5 / i3 Dual-core Mobile Sandy Bridge Processor Family
OS- Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant
Chipset- Mobile Intel® HM65 Express chipset
Memory- 4GB DDR3-1333MHz (2x2GB)
- Supports DDR3 1600*/1333/1066 MHz, 2 x SO-DIMM slots, Max. up to 16GB**

*DDR3 1600 is only supported with Intel® Core i5 2510M and above CPU.

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
VGA- Intel® HD Graphics 3000*

*Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® Vista™ and Windows® 7.
HDD- 500GB / 7200RPM, Supports 2.5" SATA HDD
ODD- BD Combo

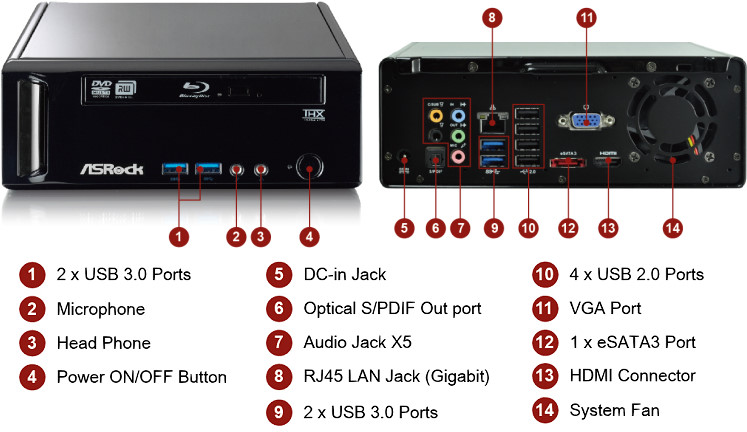

Front I/O- 2 x USB 3.0, 1 x MIC, 1 x Headphone
Rear I/O- 1 x HDMI1.4a, 1 x D-Sub, 4 x USB 2.0, 1 x S/PDIF, 1 x eSATA3*, 2 x USB 3.0

*For eSATA function, Hot Plug function is supported in AHCI mode only. IDE mode does not support Hot Plug function.
LAN- Gigabit LAN
Sound- 7.1 CH HD Audio with THX TruStudio PRO™
WiFi- 802.11b/g/n (2T2R*)

*300Mbps, 2T/2R
Remote Controller- MCE Remote Controller
Power Unit- 90W/19V Adapter
Dimension- 195mm(W)x70mm(H)x186mm(L)
Volume (liters)- 2.5L
